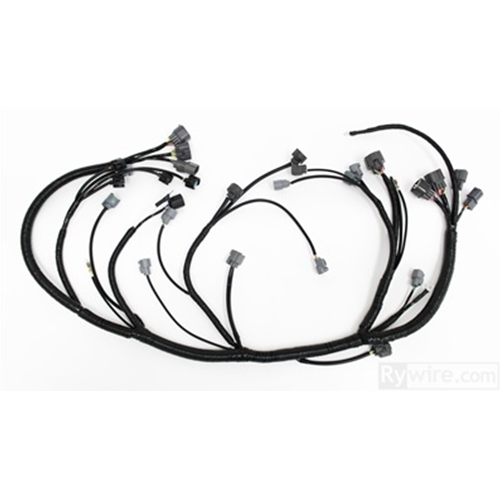

RYWIRE OEM-BASED HARNESS: HONDA CIVIC EG/DC/EK CHASSIS w/B-Series

$ 96.56

Categories: , Tile Trims

The New Rywire OEM-based harness is now available for the EG/DC chassis in left-hand drive orientation. This wire harness is made to replace the engine bay harness in the 92-95 USA model Civics with B series (96-01)swaps and 94-01 Integra's (all models). This is an OEM replacement USA model Type R harness. Ideal for Single runner type intake manifolds. This harness is equipped with the following connectors: Obd2 96-01 Distributor connectors Obd2 96-01 Alternator connector Obd2 96-01 Injector connectors 92-01 spec Air temp sensor (B series Type R top of intake manifold) 92-01 Oil pressure sending unit. Alternator charge cable to fuse box. 96 spec crankshaft sensor (B series 2 wire oil pump mounted crank sensor) Obd1 ECU cars do not need this. 92-01 knock sensor 92-01 Idle motor 92-01 TPS 92-01 Map sensor 92-01 Purge solenoid (B series Type R firewall side of intake manifold) 92-01 Vtec solenoid 92-01 Vtec solenoid pressure sensor 92-01 Reverse light switch 92-01 Water temp sensor 92-01 Water temp sending unit 92-01 Starter motor 92-01 Fan switch 92-01 Thermostat ground ring 92-01 4 wire O2 sensor 92-01 Speed sensor 92-01 passenger side shock tower plugs 92-01 Drivers side shock tower plugs Application: Honda Civic EG/DC Chassis
